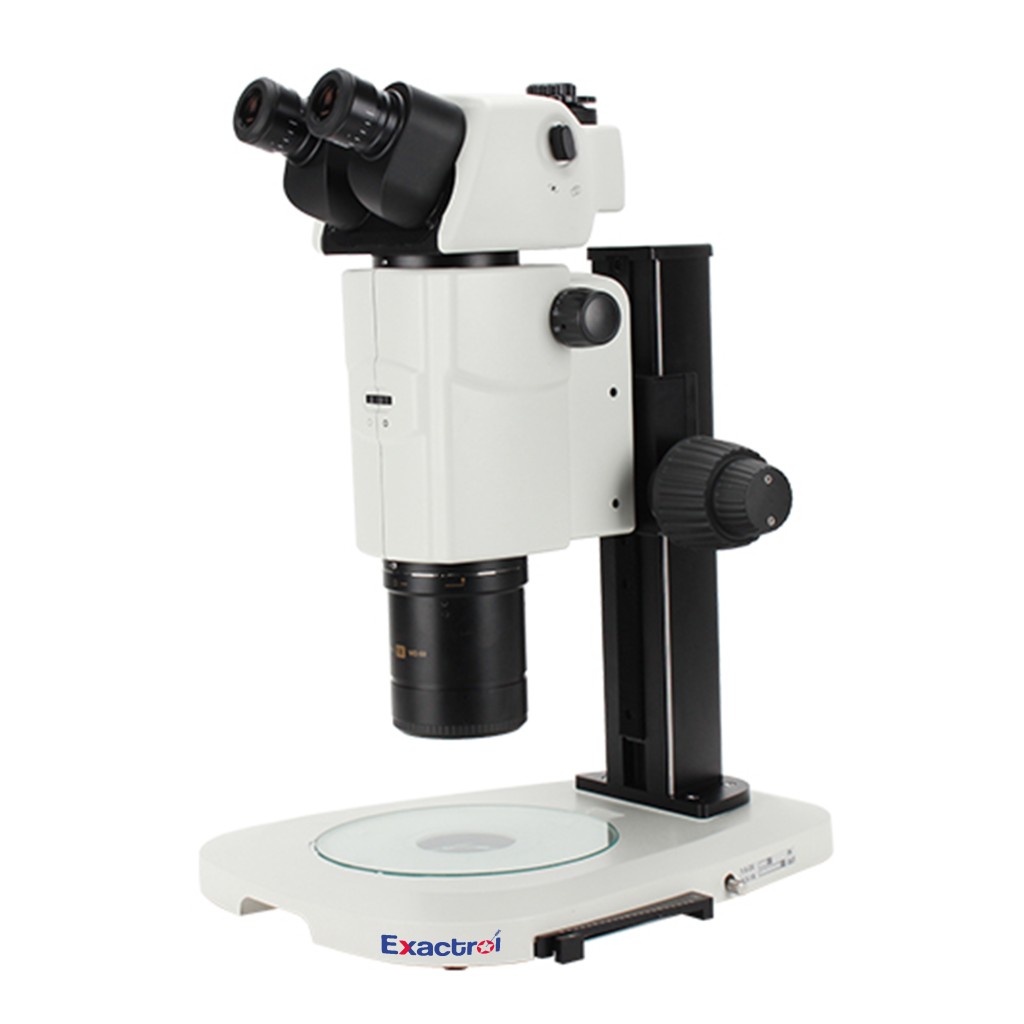

Stereoscopic Microscope With Parallel Light Zoom

Research-grade stereomicroscope with an infinite-parallel Galileo optical system and apochromatic objective. Designed for high-precision applications in life sciences, microelectronics, and materials science, it delivers exceptionally detailed images and superior chromatic correction.

FEATURES

  • Infinite Galileo optical system: Precision and detail without distortion.
  • Zoom 18:1: Rango de aumento 7.5x-135x (con ocular 10x).
  • Zoom 18:1: Magnification range 7.5x-135x (with 10x eyepiece).
  • Apochromatic objective: Advanced chromatic correction (real colors).
  • Trinocular head: Adaptable to digital cameras (C mount).
  • Diaphragm adjustment: Control of depth of field and sharpness.
  • Ergonomic design: Interpupillary and dioptric adjustment to reduce fatigue.

TECHNICAL SPECIFICATIONS

MODEL BS-3090
Optical system Galileo zoom optical system of infinite parallel
Viewing head Trinocular head inclined 30 degrees;
binocular: trinocular = 100:0, 20:80;
interpupillary distance 50-76 mm; fixed
eyepiece tube with locking screw
Eyepiece Wide field eyepiece with high viewpoint
PL10×/23 mm, adjustable diopter
Zoom range Zoom range: 0.75X-13.5X, click stop for
0.75×, 1×, 2×, 3×, 4×, 5×, 6×, 8×, 10×, 11×, 12×,
13×, 13.5×, with built-in aperture diaphragm
Objective Plan apochromatic objective 1×, WD: 60 mm,
NA 0.15
