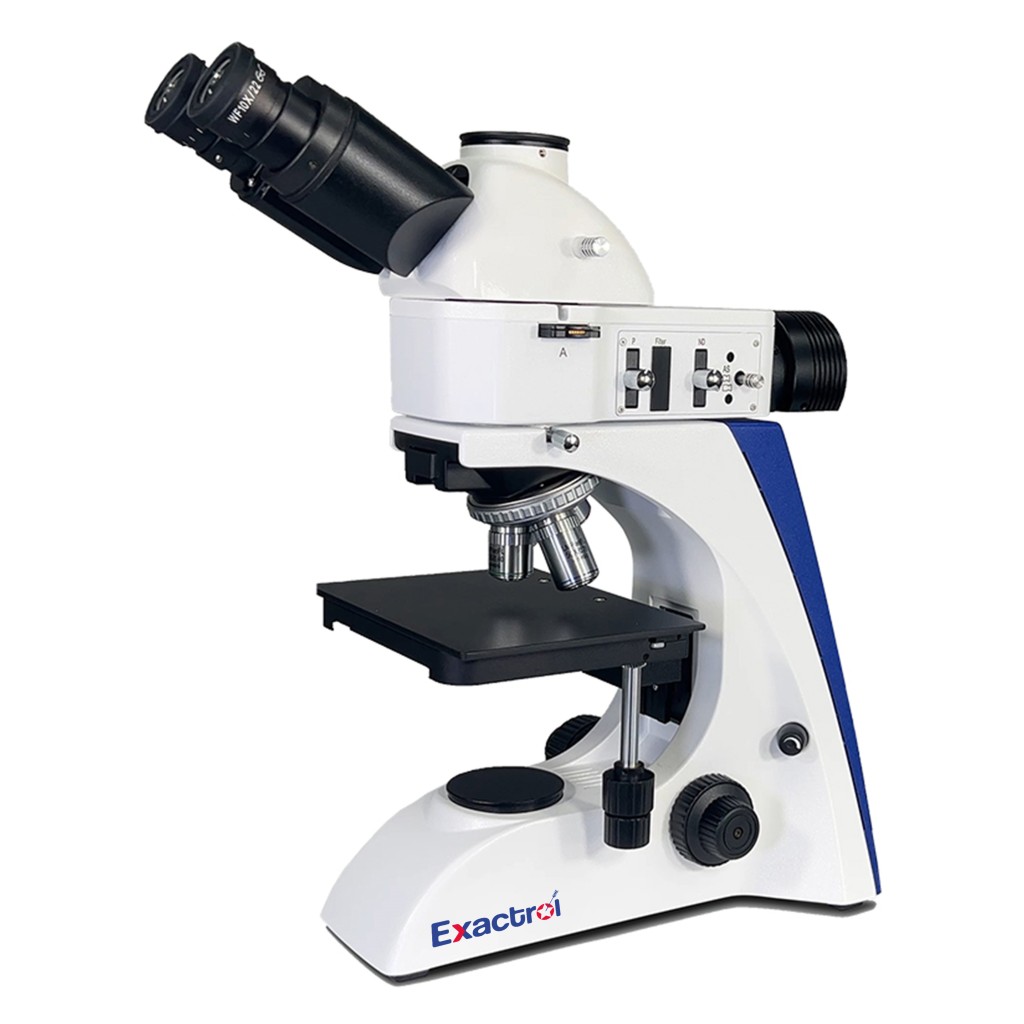

Metallurgical Microscope

High-end trinocular metallurgical microscope with infinity optical system and LED illumination, designed for advanced metallurgical analysis. Ideal for brightfield/darkfield observation and camera documentation.

FEATURES

  • High-resolution infinite optical system.
  • Trinocular head with 100:0/80:20 light divider.
  • Metallurgical objectives (bright field/dark field).
  • 22mm wide field eyepieces.
  • Mechanical plate with rapid lifting (+50mm).
  • Adjustable reflected LED lighting.
  • 100x immersion objective option.

TECHNICAL SPECIFICATIONS

MODEL BS-6002TTR(LED)
Optical system Infinite Optical System
Viewing Head 30° inclined trinocular tube, rotatable 360°, interpupillary distance: 48-76 mm, division
ratio: eyepiece: trinocular = 100:0 or 20:80
Eyepiece WF10X/22mm wide field eyepiece,
adjustable, tube diameter: 30mm,
WF10X/22mm wide field eyepiece,
adjustable, with 0.1mm reticle
Infinity Long Working Distance Plan Semi-Apochromatic Objectives 5X/NA 0.15, inner diameter = 21.0 mm,
10X/NA 0.30, inner diameter = 20.0 mm,
20X/NA 0.40, inner diameter = 15.0 mm,
50X/NA 0.55, inner diameter = 10.0 mm
