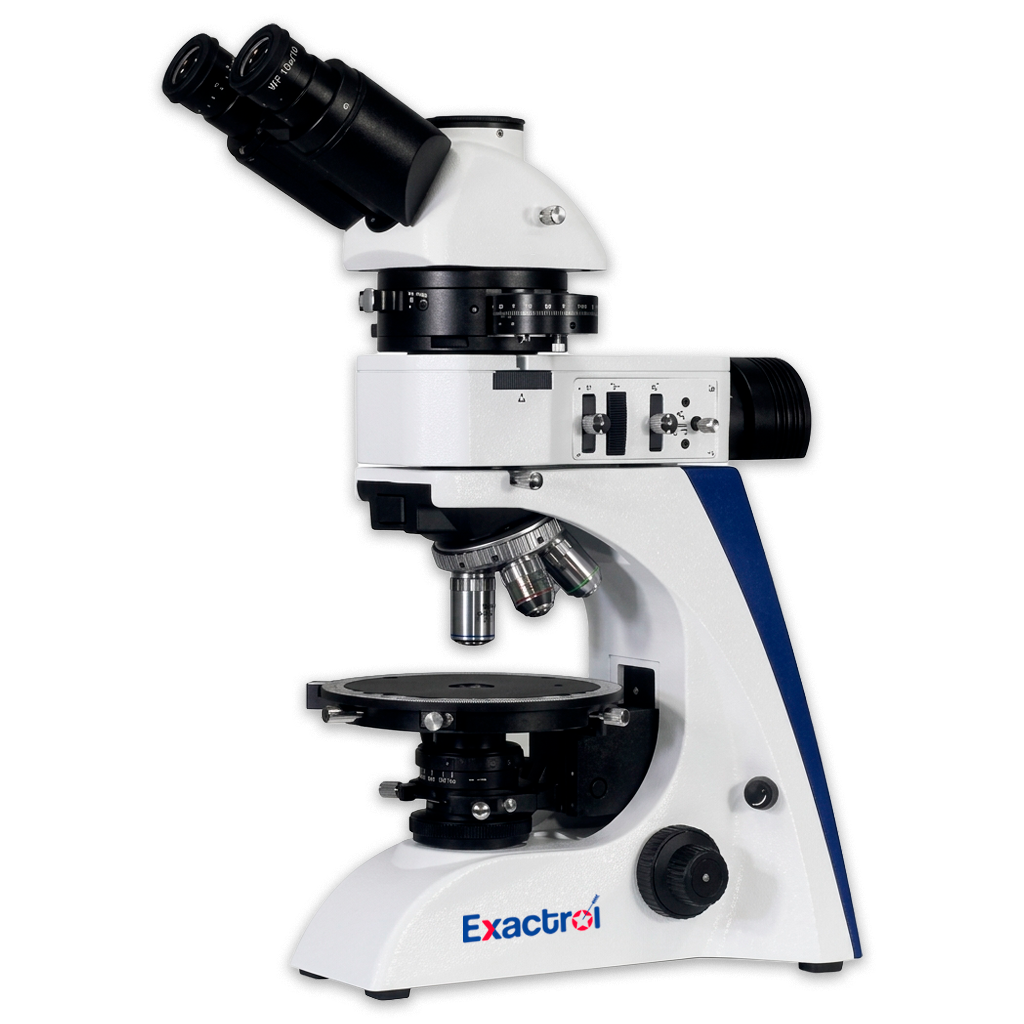

Trinocular Polarizing Microscope

A series of heavy-duty polarizing microscopes with infinity optics, designed for geological, mineralogical, and materials analysis. Ideal for industrial and research applications with single, orthogonal, and conoscopic polarization configurations.

FEATURES

  • High-resolution infinite optical system.
  • Trinocular head with fixed cross on right eyepiece.
  • 360° rotating analyzer with Bertrand lens.
  • 360° rotating stage with precise scale.
  • Professional LED lighting.
  • Compensators and foldable capacitor.
  • POL-Stage2 attachable mechanical plate.

TECHNICAL SPECIFICATIONS

MODEL BS-5062TTR (LED)
Optical system Infinite Optical System
Viewing head 30° inclined trinocular tube, rotatable
360°, interpupillary distance: 48-76 mm,
division ratio: eyepiece: trinocular = 100:0 or 20:80
Eyepiece WF10X/20mm wide field eyepiece,
adjustable, tube diameter: 30mm,
WF10X/20mm wide field eyepiece,
adjustable, with 0.1mm reticle.
Achromatic transmission plane
objective		 4X/ NA 0.10, inner diameter = 12.1 mm,
10X/NA 0.25, inner diameter = 4.64 mm,
20X/NA 0.40 (S), inner diameter = 2.41
mm, 40X/ NA 0.66 (S), total width = 0.65
mm.
