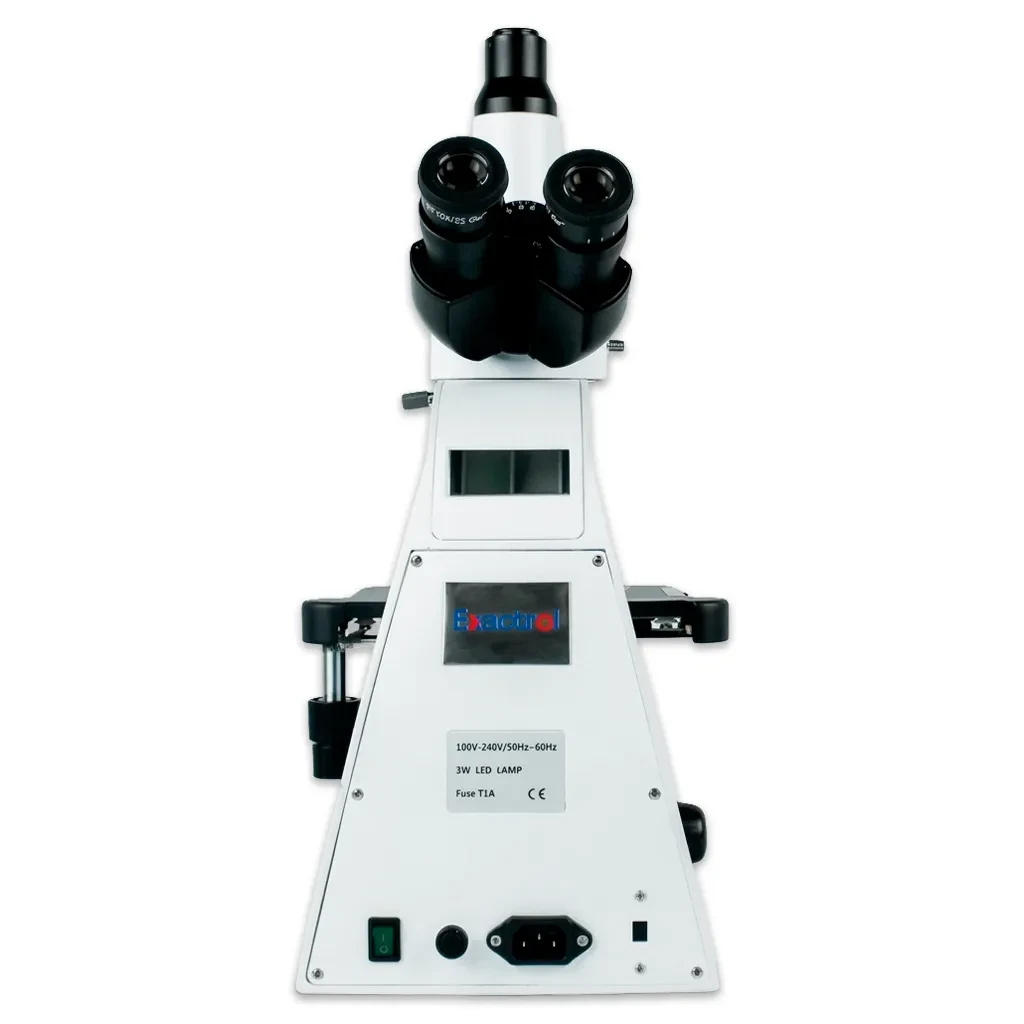

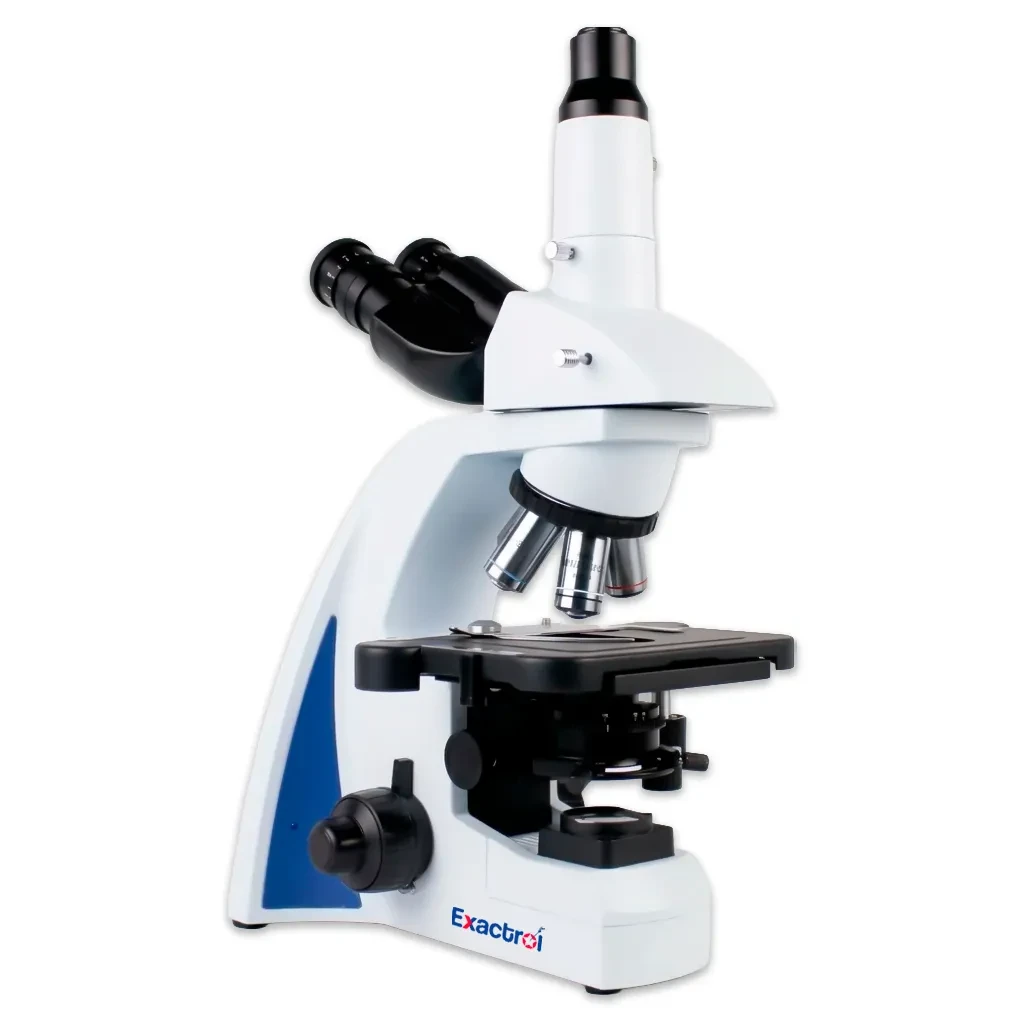

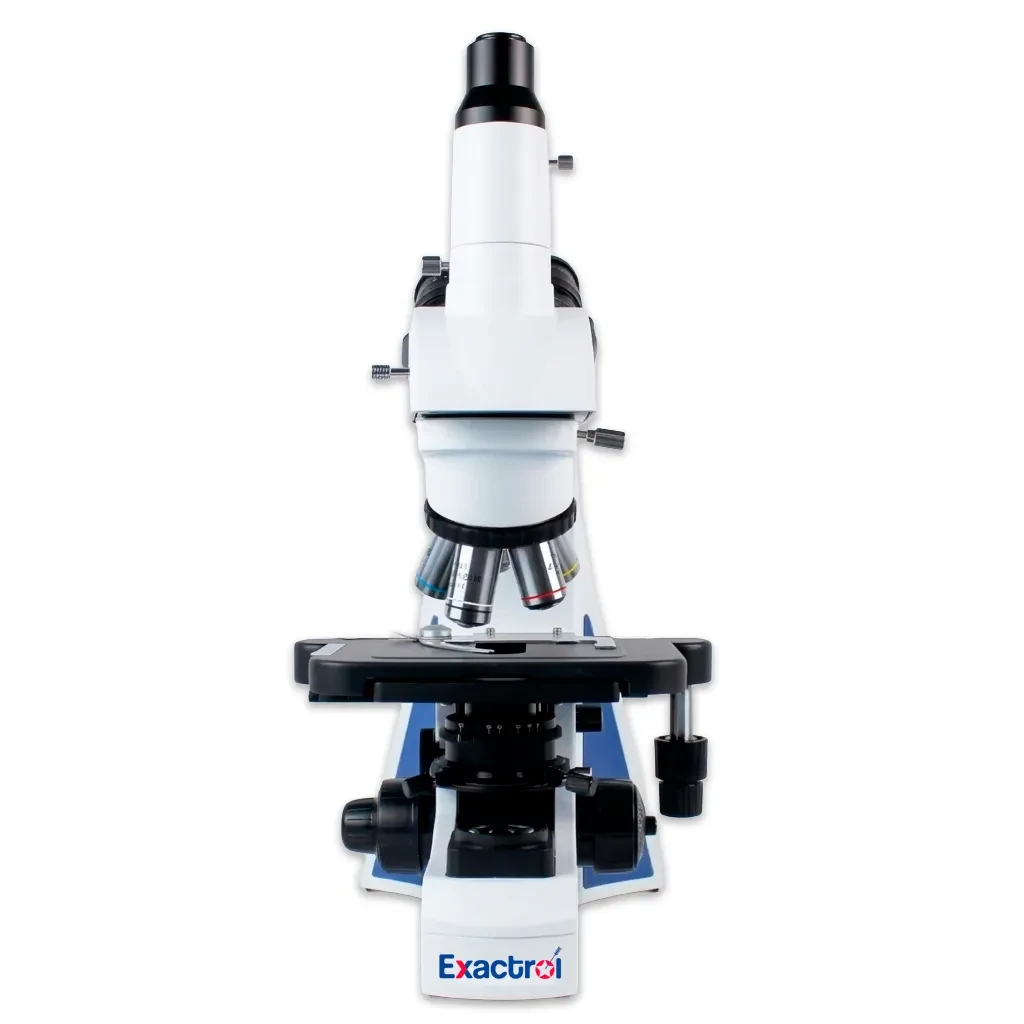

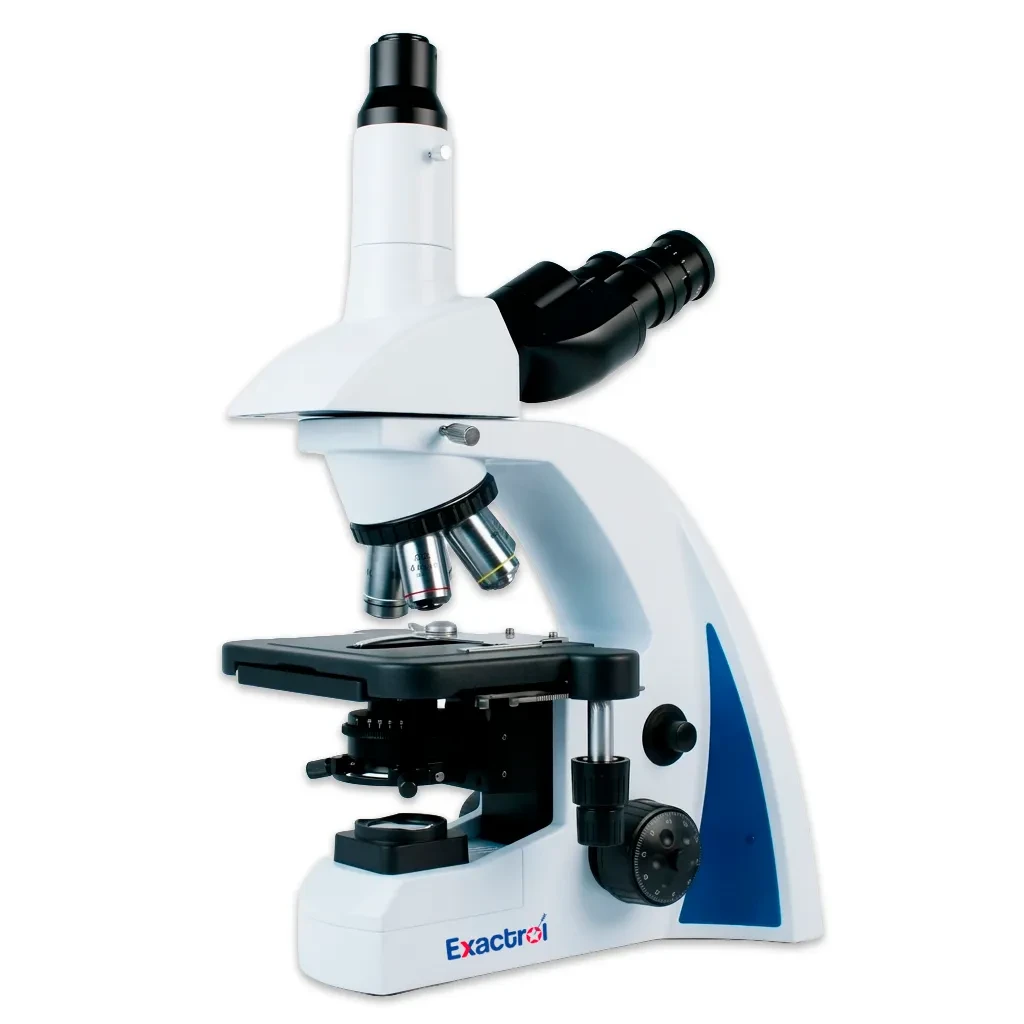

Biological Trinocular Microscope
The Trinocular model “EXCT-PW300BT” is a research microscope with 3 eyepieces that allows a camera to be attached without interrupting its use.
Its ergonomic design and infinity optical system offer improved focus and sharpness. It is ideal for laboratories, universities, hospitals, and other research facilities.
- Categorías: Microscopes, Clinical
- SKU: EXCT-PW300BT
- Stock: In stock
FEATURES
- Trinocular head and rotary revolver.
- Without stereoscopic effect.
- Compact design and fast image capture.
- Adjustable brightness and lighting.
- Tension adjustment collar.
- Main switch on the back.
ACCESSORIES
- Digital instruction manual.
- 1 protective dust cover.
- 1 spare fuse.
- 1 power cable.
- 1 blue and green filter.
TECHNICAL SPECIFICATIONS
| MODEL | EXCT-PW300BT |
| Optical System | Optical System to Infinity |
| Viewing Head | Free trinocular head. Compensatory, 30° inclined, Interpupillary 48-75mm |
| Eyepiece |
Eyepiece with adjustable diopter WF10X/22 mm |
| Revolver | Quintuple |
| Objective | Achromatic infinite plane objectives 4×,10×, 20×,40×,100× (s) |
| Mechanical Platina | Integrated plate, double sliding support (186mm x 146mm/ 78mm x 54mm) |
| Adjustable Focus System |
Coaxial fine and coarse focus adjustment, 25mm range |
| Condenser | Centered sliding condenser NA1.25 |
